Performance Monitoring's Cutting Edge

Howard Fosdick

A monitoring tool must be able to lead the DBA straight to a problem across heterogeneous, highly distributed environments. How are the major vendors meeting the challenge?

TRENDS

The past few years have seen a variety of trends in database management and performance (see Table 1). One overarching trend is the shift from physically centralized homogeneous systems toward distributed systems on a variety of platforms. Most companies today expect to be able to oversee a shortlist of diverse platforms from advanced workstations at any physical location. Environments frequently consist of various operating systems--MVS, various flavors of Unix, and Windows NT--and a mixture of databases, including Oracle, Informix, SQL Server, and DB2. Networks also add to the blend, with companies mixing NetWare and LANs, wide-area TCP/IP networks, and mainframe networks based on SNA and VTAM.


TABLE 1. Major trends in database and performance management.
Distributed Issues	Trends
Control of data center systems	• Workstation control of distributed systems
Host monitoring	• Intelligent agents to monitor distributed systems via workstation consoles
Managing homogeneous platforms (single operating system/single database system)	• Managing heterogeneous platforms (multiple operating systems/several database systems)
Point tool solutions	• Integrated toolsets monitor and manage operating systems, databases, and networks
Narrow monitoring subjects	• Expanded range of monitoring counters
Active Monitoring Issues	Trends
Human monitoring via data center consoles	• Software-system monitoring • Agents raise alerts or event triggers to indicate problems
Scheduled jobs to address problems	• "Fix-it" programs run automatically to resolve problems
Passive monitoring	• Proactive monitoring and proactive, preventative maintenance
Expertise Issues	Trends
High expertise requirement	• Expertise embedded in software • Software recommendations • Proactive software • Self-monitoring/self-maintaining systems • Embedded expert systems
Character interfaces	• Graphical management
Help systems that explain complex parameters in their own terms	• Extensive, highly explanatory help systems that make explicit recommendations



      Databases no longer function in isolation: They are bound up, inseparably, with operating systems and networks, with availability and performance issues cutting across all three areas. Companies want to move systems out to their users and design their computer support according to the companies' needs (not the other way around, as was necessary when expensive computer hardware dictated the plan). For this reason, monitoring tools must be able to handle heterogeneous, highly distributed environments.

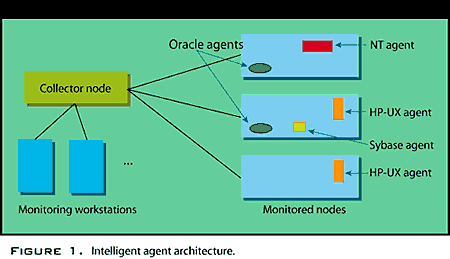

      The tools from Computer Associates, BMC, Platinum, and Oracle represent a new breed of monitoring/availability tools that have evolved to meet most of these requirements only in the past several years. How have they done it? One key is that all their products are based on intelligent agent architecture, a design that places independent modules, or agents, on each monitored node in a distributed system (see Figure 1). These agents are responsible for collecting performance data at the node on which they run and reporting it back to a central collector node. Workstations running GUI tools then access the data from the collector node and present it to administrators, DBAs, and other support personnel.

EXPERTISE ISSUES

Performance measurement, management, and improvement is typically a high-expertise endeavor. DBAs and support personnel often work with product-specific terminology. How well a tool masks this complexity--by explaining terms or concepts and rendering the environment easier to manage--is a key aspect of product differentiation. Of course, the trend is toward having software rather than humans manage system performance, reducing the need for expertise. For example, if a system is intelligent enough to see the need for a data reorganization, generate the script to achieve this task, schedule the script, and oversee its successful completion, fewer personnel will need to have intimate knowledge of reorganization utilities.
      While total automation may be the holy grail, even relatively unsophisticated management tools can do a lot to relieve the need for top-notch expertise. For example, merely having good documentation (online and printed) and a decent help system goes a long way toward helping database personnel do their jobs. Just as many programmers don't like to document their programs, many vendors skimp on their product documentation. When they do provide documentation, it is usually of a much lower caliber than the quality of the product calls for.
      Table 2 shows examples of "poor," "better," and "best" documentation. The example of poor documentation represents the kind of help a software developer might write if his or her work is not checked or held to a high standard. The example of better documentation at least provides an explanation of the term that is not self-referential. A DBA can understand exactly what is meant by the "buffer hit ratio" from this definition. The example of best documentation goes the extra mile. It capitalizes on recent browser technology advancements by including hyperlinks to related topics. More importantly, it gives advice on what to do--a significant step beyond merely describing a problem. Finally, the example of the kind of documentation we should expect in the future shows that expert systems should prescribe as well as describe. Optimally, such a help system should evolve into a self-correcting mechanism that describes the actions it took on its own to resolve an availability problem or to tune performance dynamically.


TABLE 2. Variations among help systems.

POOR: Buffer Hit Ratio: relative number of buffer hits. BETTER: Buffer Hit Ratio: relative number of I/O requests that are satisfied by reading information from Oracle's memory buffer, vs. those that require actual reading of data from disk. BEST: Buffer Hit Ratio: relative number of I/O requests that are satisfied by reading information from Oracle's buffer, versus those that require actual reading of data from disk. Because Oracle's buffer is memory or RAM, I/O requests that are satisfied by buffer access are much faster than those that require actual disk I/O. A system with a high buffer hit ratio performs much better than one with a low buffer hit ratio. If the buffer hit ratio is consistently below 90 percent, you may wish to improve it by increasing the size of Oracle's database buffers. This may entail purchasing more memory for your system. For a conceptual overview, click on SYSTEM GLOBAL AREA (SGA) and ORACLE BUFFER CACHE. For detailed information on setting the size of the buffer cache, click on the INIT.ORA parameter: DB_BLOCK_BUFFERS. Also click on related parameter: SHARED_POOL_SIZE. THE FUTURE: Contains the explanatory information of "The Best" above, plus: To initiate dynamic data collection on the buffer hit ratio and receive recommendations on optimal settings for this system, click here. To generate and schedule a script that will implement the recommended optimal settings, click here.



UNICENTER-TNG

Computer Associates first gained recognition as leader in providing add-in software for data center management back in the mainframe era. In the 1990s, it expanded its purview to cover almost all the common operating systems as well as the networking components of distributed systems. Recently it has expanded into database monitoring and problem resolution as well.
      Table 3 lists some of the major areas of functionality for Unicenter-TNG for operating system platforms, including event management, file management, tape management, workload management or scheduling, security management, problem management, system resource accounting, and report and spool management. In addition to propagating these tools to almost every popular platform, Computer Associates has also vastly expanded its automated alert and trigger system with a Systems Alert component. Systems Alert specializes in identifying and averting a wide range of common operating system problems, such as full file systems, undue swapping, kernel problems, excessive CPU utilization, and thrashing. Computer Associates' Systems Alert and Event Management are both thoroughly grounded in the intelligent agent architecture.


TABLE 3. CA-Unicenter components.
Component	Function
Event Management	Centralized message and alert collection; can oversee or automatically respond to messages and alerts
File Management	A file management system that includes backup/recovery capabilities
Tape Management	Labels and tracks tapes; ensures that tape backups are properly retained
Workload Management (job scheduling):	An industrial-strength job scheduling system that handles any level of job-scheduling complexity or remote job submission and control, and uses calendars to control schedules
Security Management	A policy-based security system that uses a central security database for all access determinations
Problem Management	Tracks and monitors problems so that a site can easily identify their status and systematically manage their resolution.
Report and Spool Management	Manage printers and reports in the distributed system so that they are spooled and routed in the most efficient and appropriate manner
System Resource Accounting	A facility designed to track computer resource usage and permit chargeback accounting and billing if desired
Systems Alert	Separate systems alert modules are available that provide intelligent agents to monitor remote operating systems, raise alerts when appropriate, and run scripts to automate problem handling
CA-20/20	Spreadsheet interface for viewing system statistics and reporting



      The company tackled the challenge of remote database management with its Oracle Agent. As Table 4 shows, this intelligent agent handles a number of common database problems in the areas of table and tablespace use, sequence numbers, disk I/O, workload balancing, and licensing. As with competing products, Oracle Agent gathers key monitoring information from Oracle's dynamic V$ tables. It measures parameters in dba_users, dba_tablespaces, dba_extents, dba_free_ space, dba_sequences, dba_data_files, dba_ segments, and other areas.


TABLE 4. CA-Unicenter's Oracle Agent features.
Feature	Function
Tablespace utilization	Space monitoring for tablespaces
Table utilization	Space monitoring for tables and their constituent extents
Tablespace fragmentation	Monitors tablespaces for excessive fragmentation and issues event alerts if thresholds are exceeded
Sequence number rollover	Detects rollovers when sequence numbers reach their allowable maximums and can issue a trap in this event
Disk I/O	Can watch for, detect, and help correct unbalanced workloads across channels or I/O adaptors
Licensing	Oracle databases can have either session usage licensing or named-users licensing. This tool issues traps or event alerts for violations of user and session thresholds



      A key distinguishing factor among products is configurability: How customizable is the tool, and how much expertise does customization require? The Oracle Agent is highly configurable and can be tailored as necessary for unique environments.
      Computer Associates' remote agent architecture relies on SNMP running on top of TCP/IP for communication. The tools use the management information base as their repository. Whether products employ widely recognized standards such as these wherever possible is another distinguishing competitive feature.
      While CA's tools are exceptional for monitoring and managing operating systems, their Oracle-specific capabilities are still evolving. The Oracle Agent focuses primarily on availability issues and threshold alerts. It offers no administrative interface for the DBA and little that aids database performance analysis and tuning.

OEM AND PERFORMANCE PACK

As you'd expect, Oracle's tools have a different scope than those of its competitors; they monitor Oracle DBMSs only. However, they accomplish this task across different operating systems (and do an excellent job of masking operating system differences).
      As the tools are from the database vendor, they feature a wider range of performance and availability parameters than many competing tools and embody more intimate knowledge of the database. They show elegant design and integration with the underlying database. They are more likely to stay up to the latest release of the base DBMS than tools from vendors that must address a range of different DBMSs. On the downside, Oracle's tools address operating system and network monitoring and control them only in so far as they affect the DBMS, rather than as areas of concern and management in their own right. You'll probably need to buy some other product to manage these areas if you use Oracle's tools.
      Figure 2 illustrates Oracle's version of the intelligent agent architecture I described earlier, which it calls the Oracle Enterprise Manager (OEM) architecture. Intelligent agents reside on remote monitored nodes while the repository serves as the centralized collector node and a communication daemon provides the failsafe communication mechanism across these components.

MORE TO COME

This brief review of two major products for monitoring, managing, and tuning Oracle databases illustrates how far such products have come in the past three years and how far they have yet to go. Even the largest, most aggressive vendors are challenged by the tremendous scope of the tasks before them in meeting customer needs. One thing's certain: If we gave Rip Van Winkle another three-year nap, he'd wake up even more astounded by how far we'll have traveled toward automated monitoring of highly distributed heterogeneous systems.

Howard Fosdick is an independent consultant who works with Oracle, SQL Server, and DB2 under various Unix flavors and Windows NT; he specializes in performance and availability issues. You can reach Howard at [email protected].
